Image Pro

Reliability:

Image Pro has a large 9″, use friendly color touch
display. Comes with an expandable relay box using
sets of 8 relay output modules for up to a maximum
of 32 relays.

Technical information:

Image Pro includes 6 analog 0 to 10 Volt outputs for
variable fan speed, heating, flap control and light
dimming.

Installation:

Image Pro engineered to give you peace of mind,
with simple remote control via Web browser,
SMS, Smartphone or Tablet.

Typical Applications:

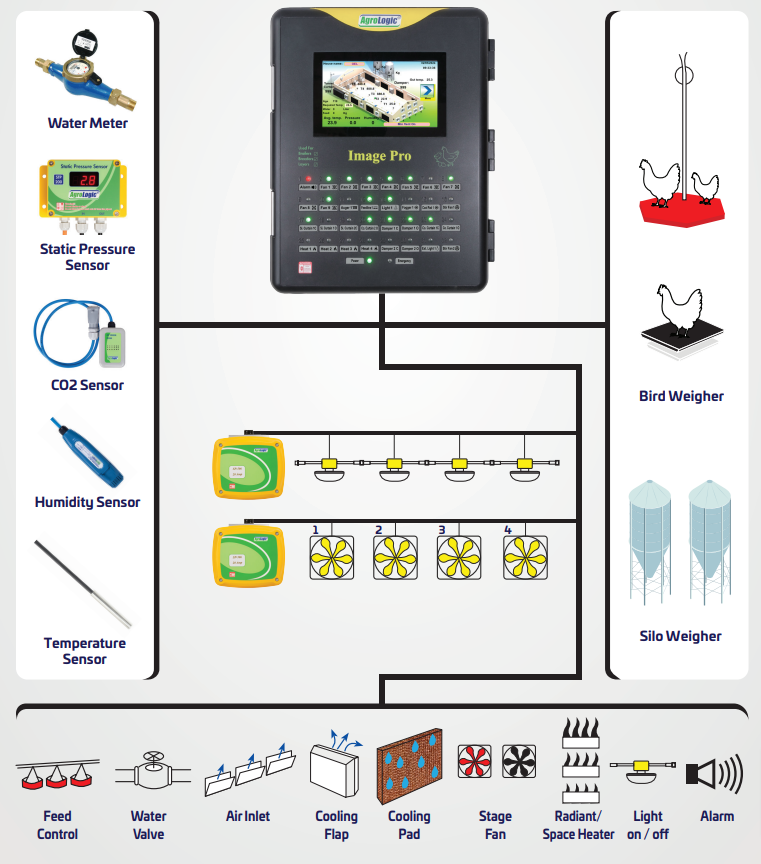

The all-inclusive controller provides complete
climate control, feed silo weighing, batch weighing,
automatic bird weighing and egg counting.
Image Pro is designed to grow with your business. It
saves all data throughout the entire growing period,
which can be displayed anytime in graphic format
on the color touch-screen display. A front USB port
makes updating and transferring information easy
to manage.
The controller is designed for use in broilers, pullets,
breeders and layers houses, flexibly controlling and
regulating all functions of operations including
variable speed fans, light dimming, static pressure,
humidity, CO2 and more. Temperature reduction and
weight curves are included as a standard.

Technical Specifications:

2 Inputs for up to 4 feed silo or 1 batch weigher

Power 110-220 V

4 inputs for bird weigher

15 Analog inputs

8-32 Dry change over contact relays 220V/2A

20 Digital inputs

Expandable with module of 8 relays up to 64 outputs

6 Analog outputs 0 to 10 volt

Temperature measurement of 0.1C
