TT12



Reliability:

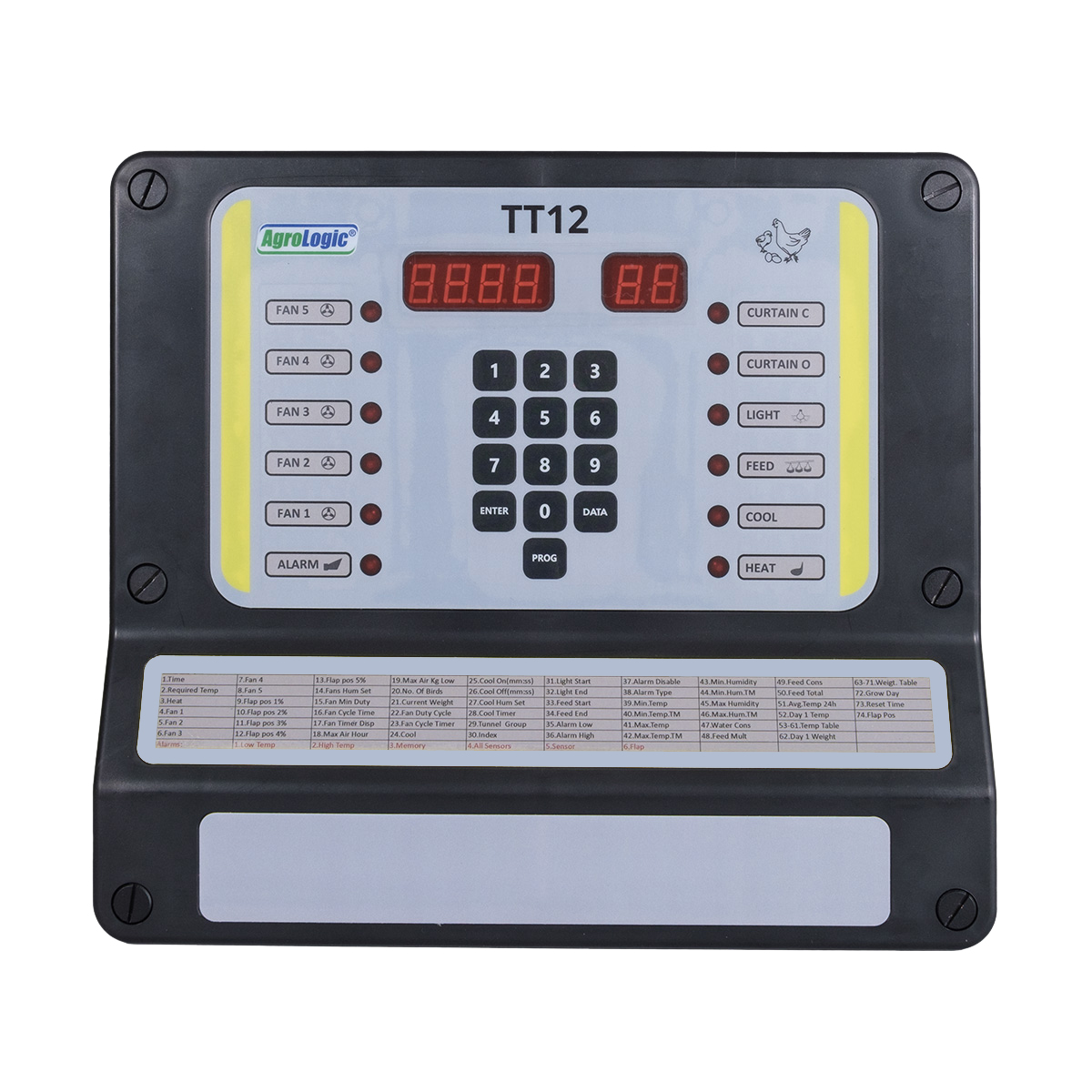

12 stage tailor-made climate controller.
TT12 climate controller is reliable, user-friendly microcontroller especially designed for poultry.
TT12 displays temperature from up to 6 temperature sensors as well as the average house temperature.
A humidity sensor, static pressure sensor, CO2 sensor or NH3 sensor can also be connected to the system.



Technical information:

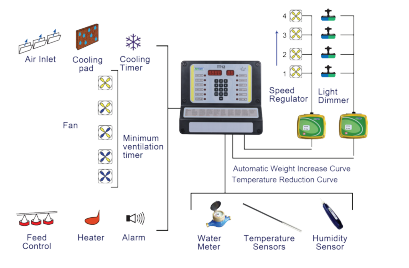

TT12 has 12 built-in relays for operating fans, heaters, inlets, curtains, and alarm relays.
20-10V outputs for use with variable speed fans and heating units.
4 digital inputs for wat, feed recording and digital
feedback for Inlet/cool flap.
An automatic temperature reduction graph can be incorporated.
Remote access is done using the WebChick PRO program together with the Agrologic DCS gateway.
Can be ordered with various standard versions or tailor-made programs.



Typical Applications:

Can be used for different Ventilation methods:
Tunnel Ventilation Cross Ventilation Natural Ventilation Minimum Ventilation Variable speed fan

Options for analog inputs:
The 6 analog inputs can be used for:
Temperature sensors, humidity, static pressure, and CO2 or NH3 sensors.

Options for digital inputs:
4 digital inputs for water and feed recording and digital
Feedback for inlet/cool flap.




User’s Manual TT12
